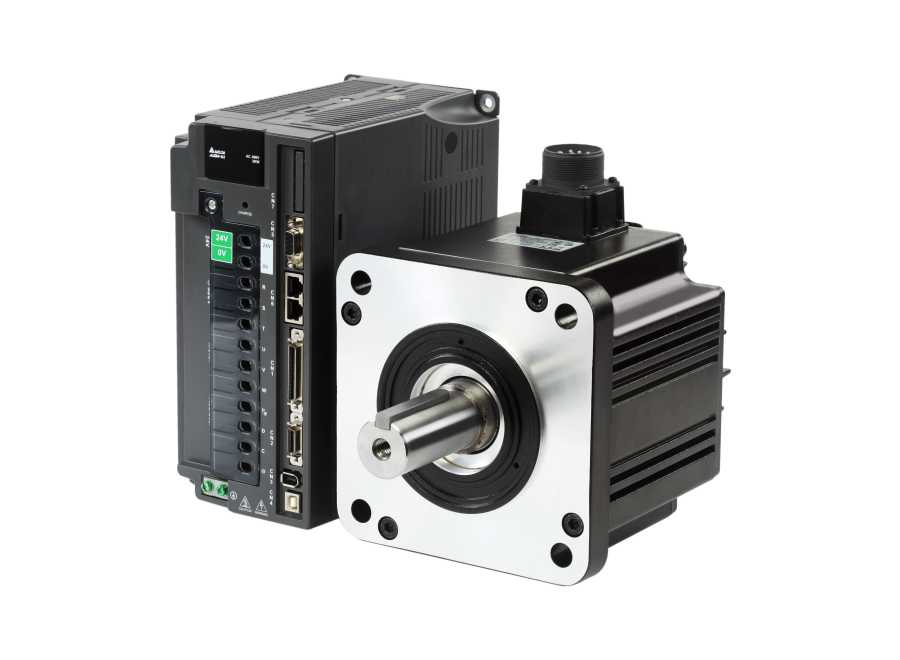

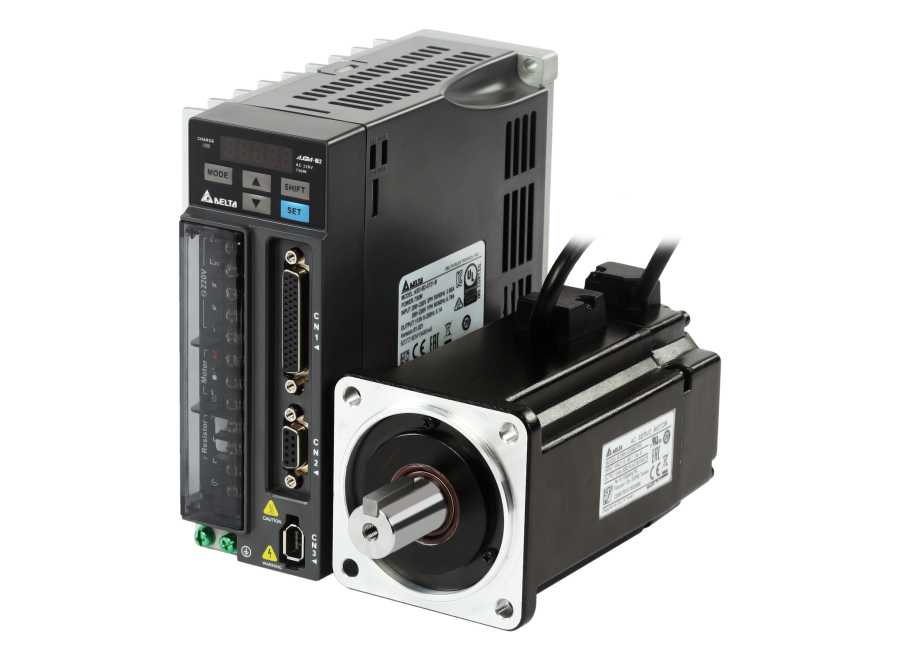

DELTA make AC Servo Motors & Drives

1. Velocity Response Frequency : 500 Hz

   - Using the original algorithm, the MINAS A series    Offers a velocity response frequency of 500   Hz.
   - The machine cycle time can be reduced.

2. The Response Suppression Function enables High-speed in Positioning

   - The built-in notch filter suppresses vibration of driven mechanism.
   - This function enables high-speed in positioning, even with low-stiffness mechanism.

3. Friendly Operation

   - The built-in frequency analyzing function detects resonance points of driven mechanism, offering simple adjustment.
   - The MINAS A series provides two tuning modes - Normal auto tuning mode and Real-time auto tuning mode

4. Covering wide range of applications

The MINAS A series can be used for almost all types  of machines, including chip mounter and general  industrial machines.

- Supports various motors : The MINAS A series supports seven types of servo motors, from low inertia type to high inertia type, covering 30 W to 7.5 kW output.
- Provides full-closed control as standard feature : The MINAS A performs position/velocity control with the linear scale mounted to a moving mechanism, the high-resolution encoder.

Note : This function is enabled when 17-bit absolute/incremental encoder is used.

1. Easy operation

   - According to the load inertia, nine levels of gain settings can be selected with the rotary switch
   - The MINAS S series is suitable for positioning purpose.

2. The resonance suppression function enables high-speed positioning

   - The built-in notch filter suppresses vibration of driven mechanism.
   - This function enables high-speed in positioning, even with low-stiffness mechanism.

3. Pursuit of high operability (Friendly operation)

   - The built-in frequency analyzing function detects resonance points of driven mechanism, offering simple adjustment.
   - The MINAS S series provides : normal auto tuning mode and real-time auto tuning mode.

4. Suitable for driving small machines

The MINAS S series is suitable for driving small machines such as transfer machine, food processing machine and general automation machines.

- Replacing a stepping motor with a servo motor results in speedup of the machine.
- The servo motor provides ultra-low inertia, covering 30 W to 750 W output capacity.
